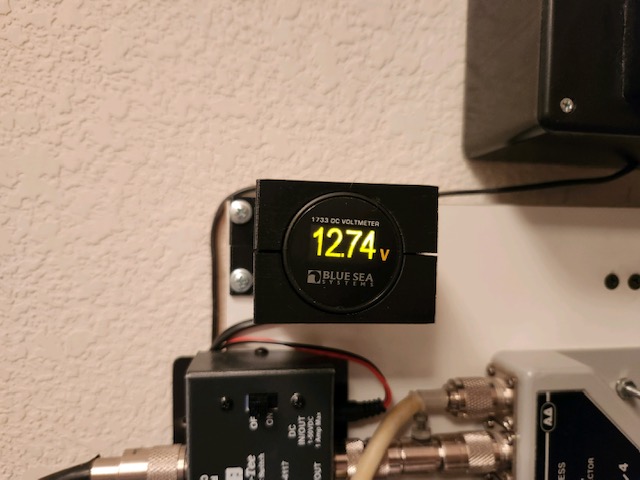

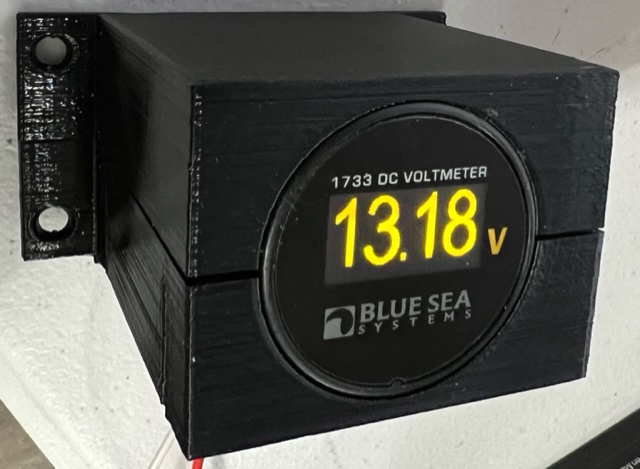

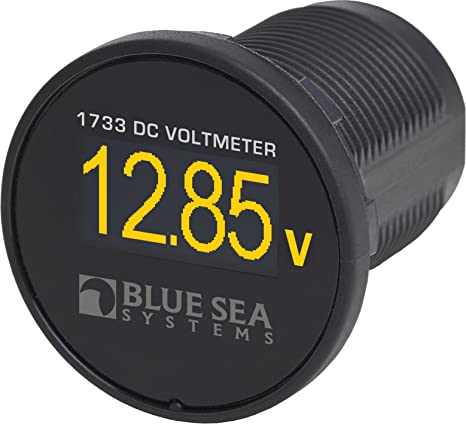

Facilitate the mounting of a 1733 Voltmeter on the wall. Includes a bottom wire notch.

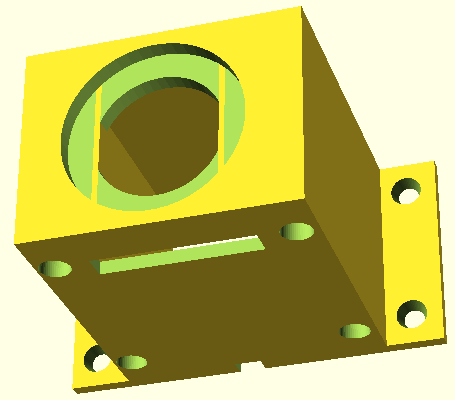

This was designed as a 2 piece unit. Pieces are screwed together using four 3mm x 12mm self-tapping screws.
A slot was also included on the underside do facilitate tightening of the mounting nut on the 1733.
This is 3D printed using PETG filament and no supports are required.

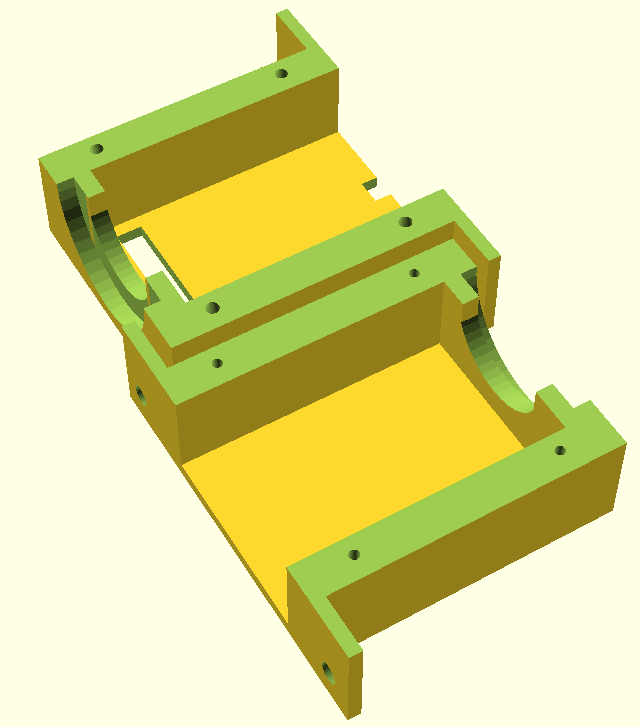

OpenSCAD Print Layout View
