12v to USB Power Adapter

Small box to convert Anderson Powerpole 12 volt input to 5 volt USB power.
Print using PETG.
Note: Use the Layer Filament change option on the final 0.4mm height to change filament colors and highlight the text.

Parts List:

QuantityDescription
23D Printed Parts
1DC Converter 12v to 5v Dual USB
63mm Screws and Nuts (USB Connectors and Converter Anchoring)
43mm x 10mm Self Taping Screws (For cover)
2Anderson Powerpole Connectors
1Anderson Powerpole Crimper

Links:

OpenSCAD Source File
3D Print STL File for Top
3D Print STL File for Box

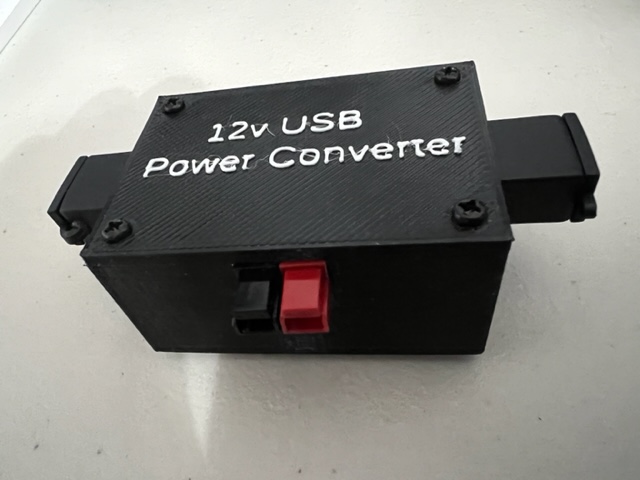

Finished Project

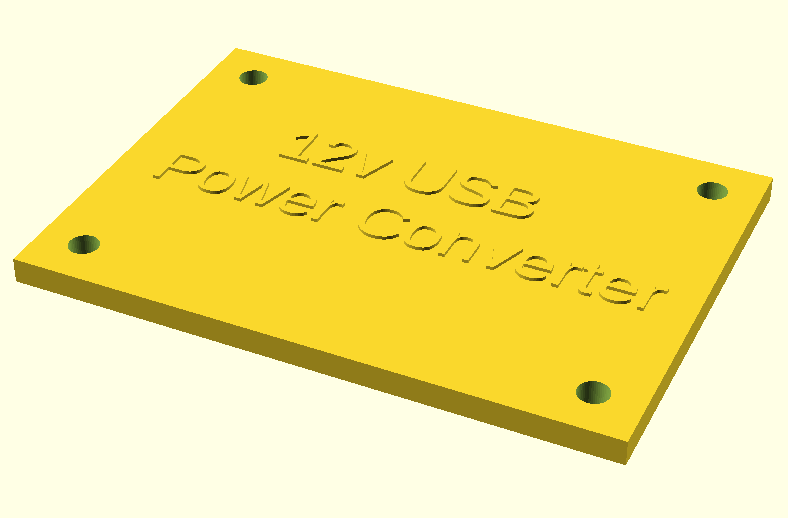

OpenSCAD View of Top

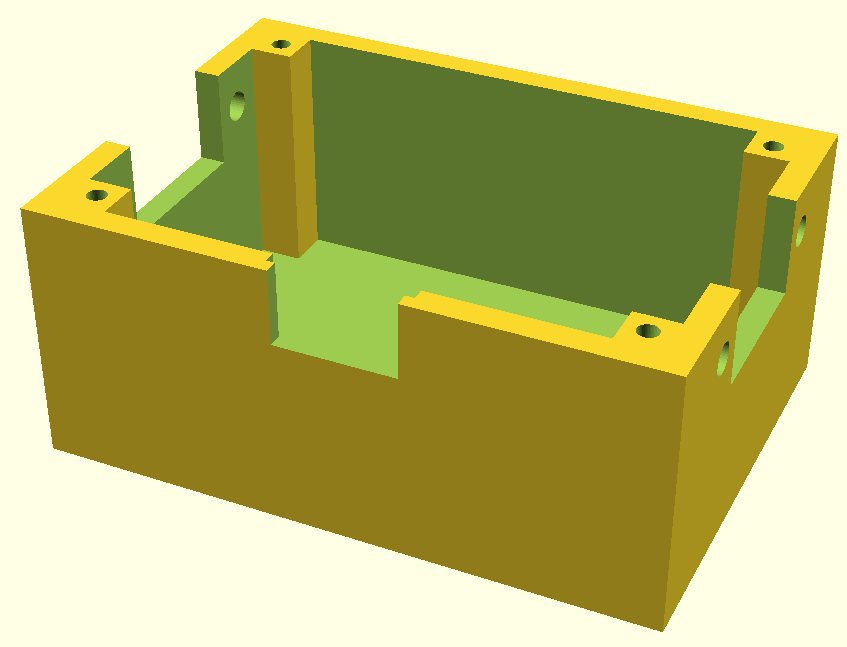

OpenSCAD View of Box
