Anderson Panel Connectors

Panel mount for four Anderson Powerpole connectors.

Parts List:

QuantityDescription
63D Printed Pieces
53mm x 6mm Self-Taping Screws
4Red Anderson Connectors
4Black Anderson Connectors
43mm x 10mm Bolts Washers and Nutes

Links:

OpenSCAD Source File
3D Print STL File
3D Print STL File

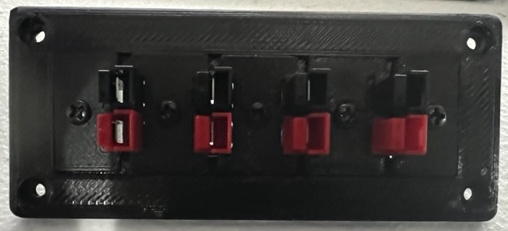

Finished Project

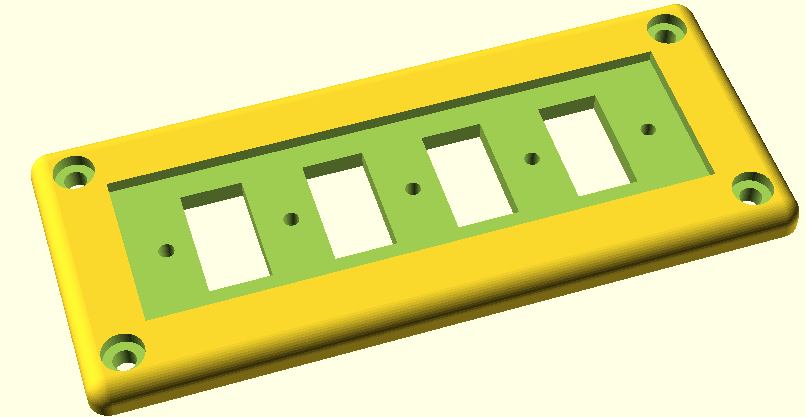

OpenSCAD Base Portion

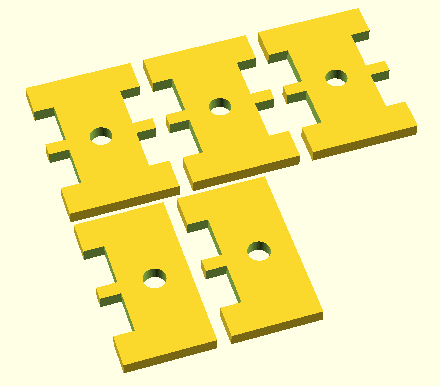

OpenSCAD Connectors
